HS100 - Brass Compression Fittings
Pipe fittings for use with copper tubing, stainless steel tubing and plastic tubing
Features
Suitable for gas, compressed air and water application
Wide range of sizes from 8mm to 54mm
compliant with the relevant British standards EN1254-2
SABS Approved, compliant with SANS 1067-1:2005
DVGW Approved
Marked for full traceability Logo on the nut.
High quality copper material options: CW617N-4MS, DZR
Surface treatment options: raw, chrome-plated, nickel-plated
Fast and easy installation
Eliminate the harsh noise during installation
Straight Coupler
Equal Straight Coupler C×C, HS100-001
Inquiry
| SIZE | D | L |
| 8×8 | 8 | 19.5 |
| 10×10 | 10 | 21.5 |
| 12×12 | 12 | 22.5 |
| 14×14 | 14 | 22.5 |
| 15×15 | 15 | 22.5 |
| 16×16 | 16 | 22.5 |
| 18×18 | 18 | 23.5 |
| 22×22 | 22 | 24 |
| 28×28 | 28 | 28 |
| 35×35 | 35 | 31.5 |
| 42×42 | 42 | 32.5 |
| 54×54 | 54 | 36 |
| 15×15×82mm | 15 | 82 |
| 22×22×82mm | 22 | 82 |

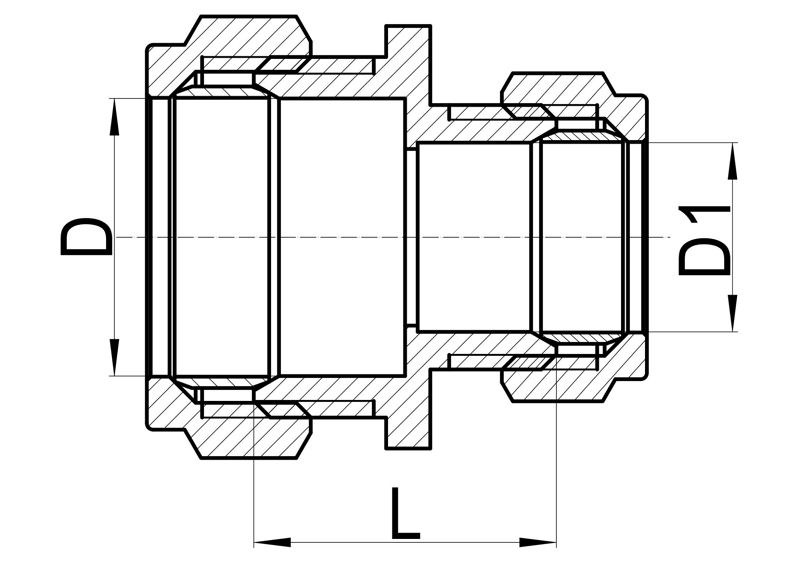

Reducing Straight Coupler C×C, HS100-002
Inquiry
| SIZE | D | D1 | L |
| 10×8 | 10 | 8 | 20.5 |
| 12×8 | 12 | 8 | 22 |
| 12×10 | 12 | 10 | 22 |
| 15×8 | 15 | 8 | 21 |
| 15×10 | 15 | 10 | 22 |
| 15×12 | 15 | 12 | 22.5 |
| 16×14 | 16 | 14 | 22.5 |
| 16×15 | 16 | 15 | 22.5 |
| 18×15 | 18 | 15 | 23 |
| 22×15 | 22 | 15 | 23 |
| 22×18 | 22 | 18 | 24 |
| 28×15 | 28 | 15 | 25.5 |
| 28×22 | 28 | 22 | 26 |
Female Straight Coupler C×FI, HS100-003
Inquiry
| SIZE | D | G | L | L1 |
| 8×1/4" F | 8 | 1/4" | 19 | 9 |
| 8×3/8" F | 8 | 3/8" | 19 | 9 |
| 10×1/4" F | 10 | 1/4" | 20 | 9 |
| 10×3/8" F | 10 | 3/8" | 20 | 9 |
| 10×1/2" F | 10 | 1/2" | 22.5 | 11.5 |
| 12×3/8" F | 12 | 3/8" | 20.5 | 9 |
| 12×1/2" F | 12 | 1/2" | 23 | 11.5 |
| 14×3/8" F | 14 | 3/8" | 21 | 9 |
| 14×1/2" F | 14 | 1/2" | 23 | 11.5 |
| 14×3/4" F | 14 | 3/4" | 24.5 | 13 |
| 15×1/4" F | 15 | 1/4" | 22.5 | 11 |
| 15×3/8" F | 15 | 3/8" | 20.5 | 9 |
| 15×1/2" F | 15 | 1/2" | 23 | 11.5 |
| 15×3/4" F | 15 | 3/4" | 24.5 | 13 |
| 15×1" F | 15 | 1" | 26 | 14 |
| 16×1/2"F | 16 | 1/2" | 23 | 11.5 |
| 16×3/4" F | 16 | 3/4" | 24.5 | 13 |
| 18×1/2" F | 18 | 1/2" | 23.5 | 11.5 |
| 18×3/4" F | 18 | 3/4" | 25 | 13 |
| 22×1/2" F | 22 | 1/2" | 23.5 | 11.5 |
| 22×3/4" F | 22 | 3/4" | 24.5 | 13 |
| 22×1" F | 22 | 1" | 26.5 | 14 |
| 28×3/4" F | 28 | 3/4" | 28 | 13 |
| 28×1" F | 28 | 1" | 28.5 | 14 |
| 35×1 1/4"F | 35 | 1.1/4" | 31.5 | 16 |
| 42×1 1/2" F | 42 | 1.1/2" | 33 | 16 |
| 54×2" F | 54 | 2" | 38.5 | 19.5 |
Male Straight Coupler C×MI, HS100-004
Inquiry
| SIZE | D | G | L | L1 |
| 8×1/8"M | 8 | 1/8" | 18.5 | 7 |
| 8×1/4"M | 8 | 1/4" | 20 | 8.5 |
| 8×3/8"M | 8 | 3/8" | 20.5 | 9 |
| 8×1/2"M | 8 | 1/2" | 21 | 9.5 |
| 10×1/4"M | 10 | 1/4" | 21 | 8.5 |
| 10×3/8"M | 10 | 3/8" | 21.5 | 9 |
| 10×1/2"M | 10 | 1/2" | 22 | 9.5 |
| 12×3/8"M | 12 | 3/8" | 22 | 9 |
| 12×1/2"M | 12 | 1/2" | 22.5 | 9.5 |
| 14×3/8"M | 14 | 3/8" | 22 | 9 |
| 14×1/2"M | 14 | 1/2" | 22.5 | 9.5 |
| 15×1/4"M | 15 | 1/4" | 21.5 | 8.5 |
| 15×3/8"M | 15 | 3/8" | 22 | 9 |
| 15×1/2"M | 15 | 1/2" | 22.5 | 9.5 |
| 15×3/4"M | 15 | 3/4" | 25 | 11 |
| 16×1/2"M | 16 | 1/2" | 22.5 | 9.5 |
| 18×1/2"M | 18 | 1/2" | 23.5 | 9.5 |
| 22×1/2"M | 22 | 1/2" | 23.5 | 9.5 |
| 22×3/4"M | 22 | 3/4" | 25.5 | 11 |
| 22×1"M | 22 | 1" | 28 | 12.5 |
| 28×3/4"M | 28 | 3/4" | 28 | 11 |
| 28×1"M | 28 | 1" | 29.5 | 12.5 |
| 28×11/4"M | 28 | 1.1/4" | 32 | 14.5 |
| 35×1 1/4"M | 35 | 1.1/4" | 33 | 14.5 |
| 35×1 1/2"M | 35 | 1.1/2" | 34.5 | 16 |
| 42×1 1/2"M | 42 | 1.1/2" | 35 | 16 |
| 54×2"M | 54 | 2" | 38 | 17 |
Male Straight Coupler C×MI, HS100-021
Inquiry
| SIZE | D | G | L | L1 |
| 8×1/4"M | 8 | 1/4" | 21.5 | 8.5 |
| 8×3/8"M | 8 | 3/8" | 23 | 9 |
| 8×1/2"M | 8 | 1/2" | 23.5 | 9.5 |
| 10×1/4"M | 10 | 1/4" | 22.5 | 8.5 |
| 10×3/8"M | 10 | 3/8" | 23 | 9 |
| 10×1/2"M | 10 | 1/2" | 24.5 | 9.5 |
| 15×1/4"M | 15 | 1/4" | 24 | 8.5 |
| 15×3/8"M | 15 | 3/8" | 24.5 | 9 |
| 15×1/2"M | 15 | 1/2" | 24 | 9.5 |
| 15×3/4"M | 15 | 3/4" | 27 | 11 |
| 18×1/2"M | 18 | 1/2" | 26.5 | 9.5 |
| 18×3/4"M | 18 | 3/4" | 27.5 | 11 |
| 22×1/2"M | 22 | 1/2" | 26 | 9.5 |
| 22×3/4"M | 22 | 3/4" | 27.5 | 11 |
| 22×1"M | 22 | 1" | 29.5 | 12.5 |
| 22×11/4"M | 22 | 1.1/4" | 33 | 14.5 |
| 28×1"M | 28 | 1" | 31.5 | 12.5 |
| 28×11/4"M | 28 | 1.1/4" | 34.5 | 14.5 |
| 35×1 1/4"M | 35 | 1.1/4" | 35 | 14.5 |
| 42×1 1/2"M | 42 | 1.1/2" | 36 | 16 |
| 54×2"M | 54 | 2" | 40 | 17 |
Crossover Coupling C×C, HS100-016
Inquiry
| SIZE | D | L |
| 15 | 15 | 87 |
| 18 | 18 | 101.5 |
| 22 | 22 | 121 |
Elbow
Equal / Reducing Elbow C×C, HS100-005
Inquiry
| SIZE | D | D1 | L | H |
| 8×8 | 8 | 8 | 15 | 15 |
| 10×10 | 10 | 10 | 17 | 17 |
| 12×12 | 12 | 12 | 17.5 | 17.5 |
| 14×14 | 14 | 14 | 20.5 | 20.5 |
| 15×15 | 15 | 15 | 20.5 | 20.5 |
| 16×16 | 16 | 16 | 21 | 21 |
| 18×18 | 18 | 18 | 23.5 | 23.5 |
| 22×15 | 22 | 15 | 23 | 23 |
| 22×22 | 22 | 22 | 25 | 25 |
| 28×15 | 28 | 15 | 23 | 26.5 |
| 28×22 | 28 | 22 | 34 | 26 |
| 28×28 | 28 | 28 | 29.5 | 29.5 |
| 35×35 | 35 | 35 | 35.5 | 35.5 |
| 42×42 | 42 | 42 | 40 | 40 |
| 54×54 | 54 | 54 | 47 | 47 |
Female Elbow C×FI, HS100-006
Inquiry
| SIZE | D | G | L | H | H1 |
| 8×1/4"F | 8 | 1/4" | 18 | 14 | 9 |
| 10×3/8"F | 10 | 3/8" | 20 | 16.5 | 10 |
| 12×1/2"F | 12 | 1/2" | 22.5 | 18 | 11.5 |
| 14×1/2"F | 14 | 1/2" | 22.5 | 19 | 11.5 |
| 15×1/2"F | 15 | 1/2" | 22.5 | 19 | 11.5 |
| 15×3/4"F | 15 | 3/4" | 26 | 20.5 | 13 |
| 16×1/2"F | 16 | 1/2" | 22.5 | 19 | 11.5 |
| 18×1/2"F | 18 | 1/2" | 23.5 | 20.5 | 11.5 |
| 18×3/4"F | 18 | 3/4" | 25.5 | 22 | 13 |
| 22×1/2"F | 22 | 1/2" | 23 | 22.5 | 11.5 |
| 22×3/4"F | 22 | 3/4" | 26.5 | 24 | 13 |
| 22×1"F | 22 | 1" | 30 | 25 | 14 |
| 28×1"F | 28 | 1" | 31 | 27.5 | 14 |
| 35×1 1/4"F | 35 | 1.1/4" | 37 | 33 | 16 |
| 42×1 1/2"F | 42 | 1.1/2" | 41.5 | 36.5 | 16 |
| 54×2"F | 54 | 2" | 49 | 46 | 19.5 |
Male Elbow C×MI, HS100-007
Inquiry
| SIZE | D | G | L | H | H1 |
| 8×1/4"M | 8 | 1/4" | 16.5 | 18 | 8.5 |
| 10×1/4"M | 10 | 1/4" | 16.5 | 19 | 8.5 |
| 10×3/8"M | 10 | 3/8" | 19 | 21 | 10 |
| 12×1/2"M | 12 | 1/2" | 21 | 21 | 9.5 |
| 14×1/2"M | 14 | 1/2" | 21 | 23 | 9.5 |
| 15×1/4"M | 15 | 1/4" | 19 | 22 | 8.5 |
| 15×3/8"M | 15 | 3/8" | 19 | 22.5 | 9 |
| 15×1/2"M | 15 | 1/2" | 21 | 23 | 9.5 |
| 15×3/4"M | 15 | 3/4" | 24 | 24.5 | 11 |
| 16×1/2"M | 16 | 1/2" | 21 | 24 | 9.5 |
| 18×1/2"M | 18 | 1/2" | 21 | 25 | 9.5 |
| 18×3/4"M | 18 | 3/4" | 24 | 27 | 11 |
| 22×1/2"M | 22 | 1/2" | 21.5 | 27 | 9.5 |
| 22×3/4"M | 22 | 3/4" | 24.5 | 28.5 | 11 |
| 22×1"M | 22 | 1" | 28 | 30 | 12.5 |
| 28×1"M | 28 | 1" | 29.5 | 34 | 12.5 |
| 35×1 1/4"M | 35 | 1.1/4" | 36.5 | 40.5 | 14.5 |
| 42×1 1/2"M | 42 | 1.1/2" | 39 | 45 | 16 |
| 54×2"M | 54 | 2" | 46 | 55 | 17 |
Wall Plate Elbow C×FI, HS100-011
Inquiry
| SIZE | D | G | L | H | H1 | H2 |
| 12×1/2"F | 12 | 1/2" | 22.5 | 30 | 18 | 11.5 |
| 14×1/2"F | 14 | 1/2" | 22.5 | 33 | 19 | 11.5 |
| 15×1/2"F | 15 | 1/2" | 22.5 | 33 | 19 | 11.5 |
| 16×1/2"F | 16 | 1/2" | 22.5 | 34 | 19 | 11.5 |
| 18×1/2"F | 18 | 1/2" | 23.5 | 41 | 24 | 15 |
| 18×3/4"F | 18 | 3/4" | 28 | 43 | 26 | 16.5 |
| 22×1/2"F | 22 | 1/2" | 29 | 50 | 30.5 | 15 |
| 22×3/4"F | 22 | 3/4" | 26.5 | 42 | 24 | 13 |
45 Degree Elbow, HS100-020
Inquiry
| SIZE | D | L | H |
| 15×45° | 15 | 18 | 18 |
| 22×45° | 22 | 22 | 22 |
| 28×45° | 28 | 26 | 26 |
Tee
Equal Tee C×C×C, HS100-008
Inquiry
| SIZE | D | L | H |
| 8×8×8 | 8 | 30 | 15 |
| 10×10×10 | 10 | 34 | 17 |
| 12×12×12 | 12 | 35 | 17.5 |
| 14×14×14 | 14 | 41 | 20.5 |
| 15×15×15 | 15 | 41 | 20.5 |
| 16×16×16 | 16 | 42 | 21 |
| 18×18×18 | 18 | 47 | 23.5 |
| 22×22×22 | 22 | 50 | 25 |
| 28×28×28 | 28 | 59 | 29.5 |
| 35×35×35 | 35 | 71 | 35.5 |
| 42×42×42 | 42 | 80 | 40 |
| 54×54×54 | 54 | 94 | 47 |
Reducing Tee C×C×C, HS100-009
Inquiry
| SIZE | D | D1 | D2 | L1 | L2 | H |
| 15×15×22 | 15 | 15 | 22 | 23.5 | 23.5 | 21.5 |
| 18×18×15 | 18 | 18 | 15 | 22 | 22 | 24 |
| 18×15×18 | 18 | 15 | 18 | 24 | 22 | 24 |
| 22×15×15 | 22 | 15 | 15 | 23 | 19.5 | 23 |
| 22×15×22 | 22 | 15 | 22 | 25 | 23.5 | 25 |
| 22×22×15 | 22 | 22 | 15 | 23 | 23 | 23.5 |
| 22×22×18 | 22 | 22 | 18 | 23 | 23 | 27 |
| 22×22×28 | 22 | 22 | 28 | 28 | 28 | 28.5 |
| 28×15×15 | 28 | 15 | 15 | 23 | 20.5 | 26.5 |
| 28×22×15 | 28 | 22 | 15 | 24.5 | 21 | 28 |
| 28×28×15 | 28 | 28 | 15 | 23 | 23 | 26.5 |
| 28×15×28 | 28 | 15 | 28 | 29.5 | 26.5 | 29.5 |
| 28×22×22 | 28 | 22 | 22 | 28.5 | 26.5 | 29 |
| 28×28×22 | 28 | 28 | 22 | 26 | 26 | 29 |
| 28×22×28 | 28 | 22 | 28 | 29.5 | 27 | 29.5 |
| 35×35×15 | 35 | 35 | 15 | 26 | 26 | 34 |
| 35×35×22 | 35 | 35 | 22 | 31 | 31 | 34 |
| 35×35×28 | 35 | 35 | 28 | 31 | 31 | 34 |
| 42×42×15 | 42 | 42 | 15 | 28 | 28 | 38.5 |
| 42×42×22 | 42 | 42 | 22 | 28 | 28 | 38.5 |
| 42×42×28 | 42 | 42 | 28 | 35 | 35 | 40 |
| 42×42×35 | 42 | 42 | 35 | 35 | 35 | 40 |
| 54×54×15 | 54 | 54 | 15 | 35.5 | 35.5 | 46 |
| 54×54×22 | 54 | 54 | 22 | 35.5 | 35.5 | 46 |
| 54×54×28 | 54 | 54 | 28 | 35.5 | 35.5 | 46 |
| 54×54×35 | 54 | 54 | 35 | 42 | 42 | 46.5 |
| 54×54×42 | 54 | 54 | 42 | 42 | 42 | 46.5 |
|
Female Tee C×C×FI, HS100-010
Inquiry
| SIZE | D | G | L | H | H1 |
| 12×12×1/2“F | 12 | 1/2" | 45 | 18 | 11.5 |
| 14×14×1/2“F | 14 | 1/2" | 45 | 19 | 11.5 |
| 15×15×1/2“F | 15 | 1/2" | 45 | 19 | 11.5 |
| 16×16×1/2“F | 16 | 1/2" | 45 | 19 | 11.5 |
| 18×18×1/2“F | 18 | 1/2" | 47 | 20.5 | 11.5 |
| 18×18×3/4“F | 18 | 3/4" | 51 | 22 | 13 |
| 22×22×1/2”F | 22 | 1/2" | 46 | 22.5 | 11.5 |
| 22×22×3/4”F | 22 | 3/4" | 53 | 24 | 13 |
| 28×28×1/2”F | 28 | 1/2" | 52 | 24.5 | 11.5 |
| 28×28×3/4”F | 28 | 3/4" | 55 | 26.5 | 13 |
| 28×28×1”F | 28 | 1" | 62 | 27.5 | 14 |
Tap Connector
Straight Tap Connector C×FI, HS100-014
Inquiry
| SIZE | D | G | L |
| 15×1/2"F | 15 | 1/2" | 31.5 |
| 15×3/4"F | 15 | 3/4" | 33.5 |
| 22×3/4"F | 22 | 3/4" | 34.5 |
Bent Tap Connector C×FI, HS100-015
Inquiry
| SIZE | D | G | L | H |
| 15×1/2"F | 15 | 1/2" | 21 | 27.5 |
| 22×3/4"F | 22 | 3/4" | 34 | 22 |
End Cap
Stop End, HS100-013
Inquiry
| SIZE | D | L |
| 8 | 8 | 11 |
| 10 | 10 | 12 |
| 12 | 12 | 12.5 |
| 15 | 15 | 12.5 |
| 18 | 18 | 13.5 |
| 22 | 22 | 13.5 |
| 28 | 28 | 15.5 |
| 35 | 35 | 18 |
| 42 | 42 | 19 |
| 54 | 54 | 20 |
Tank Connector
Water Tank Connector, HS100-012
Inquiry
| SIZE | D | L |
| 15 | 15 | 36 |
| 22 | 22 | 37 |
| 28 | 28 | 37 |
| 35 | 35 | 42 |
| 42 | 42 | 44 |
| 54 | 54 | 45 |
Male Brass Water Tank Connector C×MI, HS100-019
Inquiry
| SIZE | D | G | L | L1 |
| 15×1/2" | 15 | 1/2" | 55 | 37.5 |
| 22×3/4" | 22 | 3/4" | 56.5 | 37.5 |
| 28×1" | 28 | 1" | 61 | 40 |
| 35×1"1/4 | 35 | 1.1/4" | 66.5 | 43 |
| 42×1"1/2 | 42 | 1.1/2" | 73.5 | 47 |
| 54×2" | 54 | 2" | 77 | 50 |
Reducing Coupler
Reduced Piece C×C, HS100-017
Inquiry
| SIZE | D | D1 | L |
| 12×8 | 12 | 8 | 15.5 |
| 15×8 | 15 | 8 | 18.5 |
| 15×10 | 15 | 10 | 18.5 |
| 22×15 | 22 | 15 | 18.5 |
| 28×15 | 28 | 15 | 20.5 |
| 28×22 | 28 | 22 | 20.5 |
| 35×22 | 35 | 22 | 21 |
| 35×28 | 35 | 28 | 21 |
Reduced Set (Three Pieces) C×C, HS100-018
Inquiry
| SIZE | D | D1 | L | L1 |
| 10×8 | 10 | 8 | 10 | 4 |
| 12×8 | 12 | 8 | 10 | 4 |
| 15×8 | 15 | 8 | 10 | 4 |
| 15×10 | 15 | 10 | 10 | 4 |
| 15×12 | 15 | 12 | 10 | 4 |
| 22×15 | 22 | 15 | 10 | 4 |
| 28×15 | 28 | 15 | 13 | 5 |
| 28×22 | 28 | 22 | 13 | 5 |
| 35×15 | 35 | 15 | 13 | 5.5 |
| 35×22 | 35 | 22 | 13 | 5.5 |
| 35×28 | 35 | 28 | 13 | 5.5 |
| 42×15 | 42 | 15 | 14 | 6 |
| 42×22 | 42 | 22 | 14 | 6 |
| 42×28 | 42 | 28 | 14 | 6 |
| 42×35 | 42 | 35 | 14 | 6 |
| 54×22 | 54 | 22 | 16 | 6.5 |
| 54×28 | 54 | 28 | 16 | 6.5 |
| 54×35 | 54 | 35 | 16 | 6.5 |
| 54×42 | 54 | 42 | 16 | 6.5 |
HS100 - Brass Compression Fittings
HS110 - Brass End Feed Fittings
HS320 Brass Compression Fitting
HS340 Brass End-feed Fitting
HS120 - Brass Repair Clamps
HS260 - Brass Flare Fittings
HS270 - Brass Compression Fittings for USA
HS280 - Brass Compression Fittings with Brass Insert for USA
>
>
>
>
>
>
